TiMOTION’s TL series lifting columns are specifically designed for use in ergonomic desks and work tables. Using multiple TL series lifting columns with compatible TC series Control Boxes and TH/TDH series controls, work surfaces can be controlled quietly and smoothly with synchronous movement. All Ergo Motion TC series control boxes have a less than 0.1W standby power option that reduces power consumption. Our wide range of columns offer customers the devices they require to satisfy their working environment project requirements.

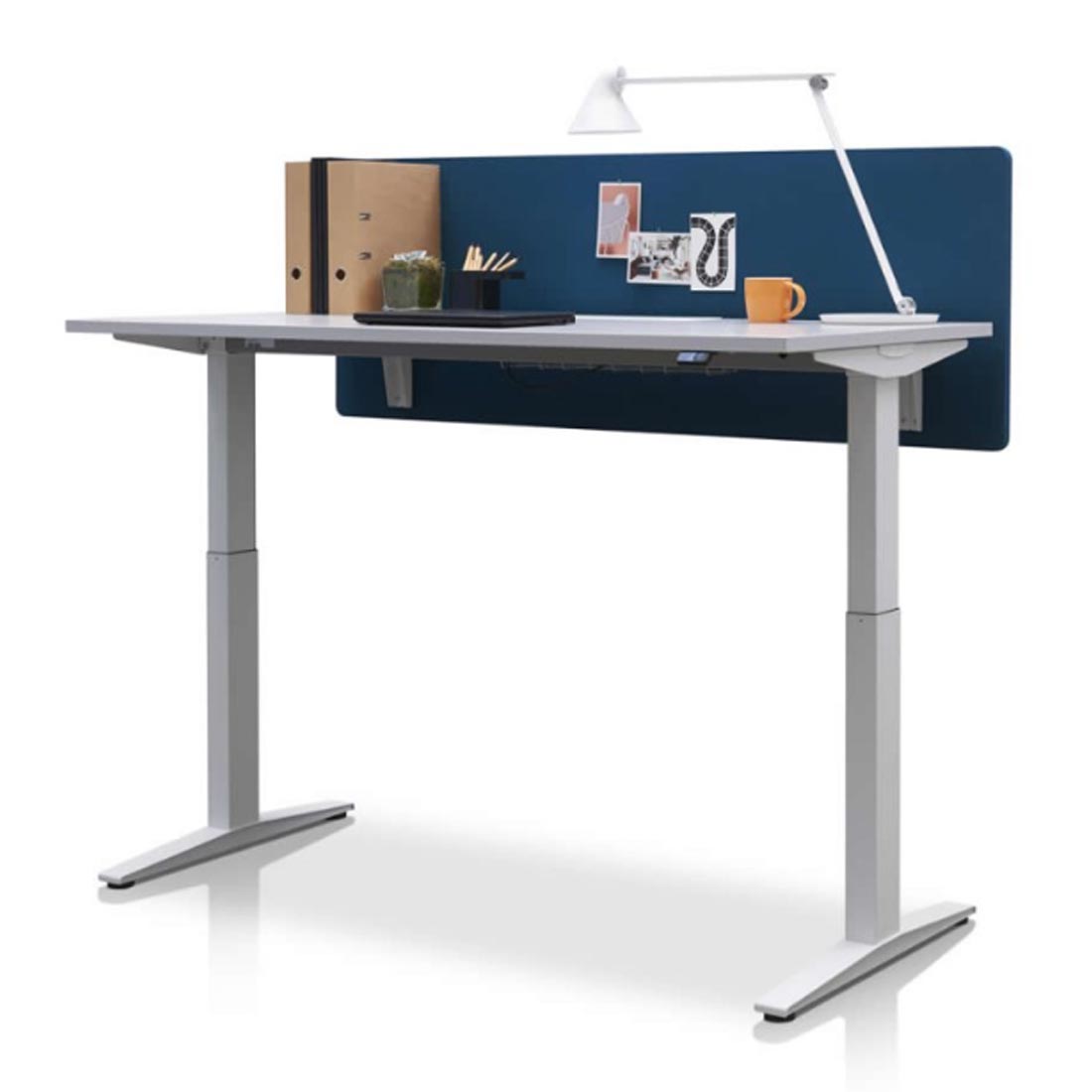

Two Leg Solution
General Features
Frame Orientation
Rectangular
Maximum Load
120kg
Constant Speed (<80Kg)
3 stage column: 40mm/s 2 stage column: 33mm/s
Frame Height
3 stage column: 630~1280mm
3 stage column (M): 600~1260mm 3 stage column (S)*: 560~1220mm 2 stage column: 680~1180mm
Frame Width

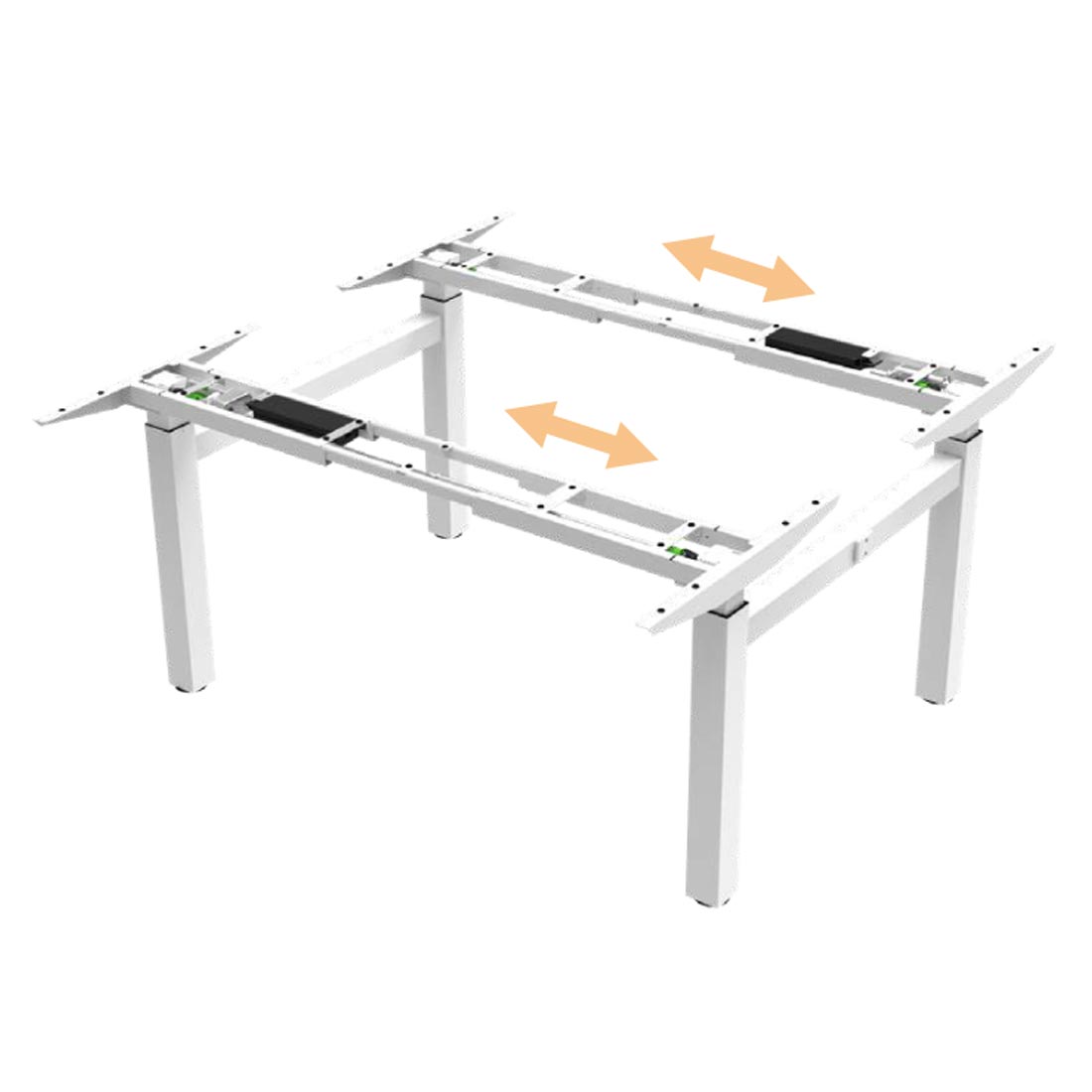

Long: 1165~1965mm Short: 1050~1850mm
Weight of Package

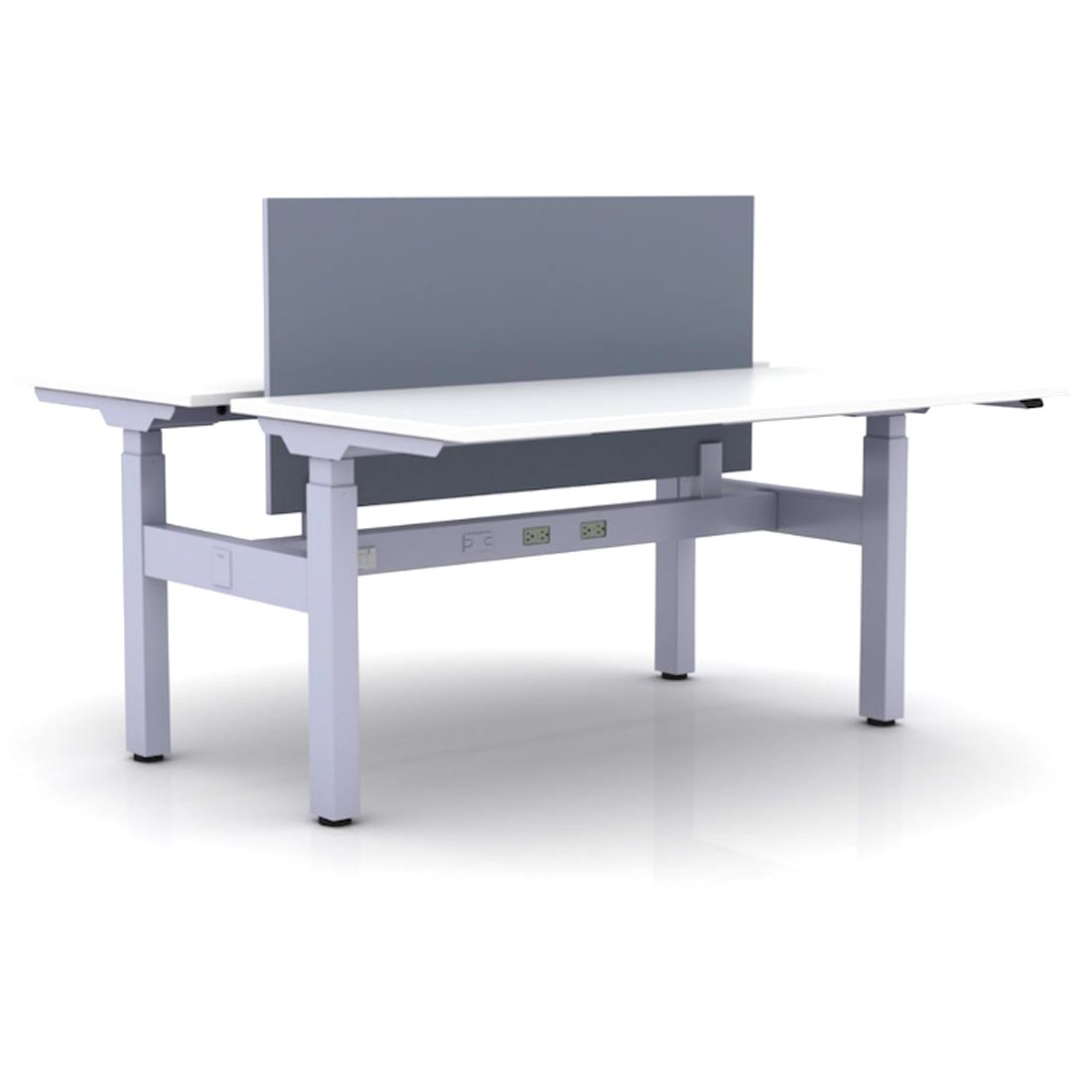

33~40Kg* for two leg and 90 kg per frame for four legs
*The actual weight of package may vary due to customer’s selection of components.
Low Standby Power
<0.1W
Recommended Work Surface Dimensions
Long: 1200~2000mm (width) Short: 1100~1900mm (width) 700~1000mm (depth)
Accessories (optional)
Cable tray, safety lock and enhanced anti-collision feature with t-touch, TFA1/3, TWC
Other Features:
• Multiple column and control options • High strength and stability –
• Pre-assembled frame kit
